Thwaites 2t FT Dumper
Site Dumpers
Specifications
Modal
2 Tonne Front Tip
Payload (Kg)
2000
Heaped Capacity (ltrs)
1240
Engine
Yanmar 3TNV88-BWWA
Rated Engine Power Output
18.1 kW (24.3 bhp) @ 2000 rpm

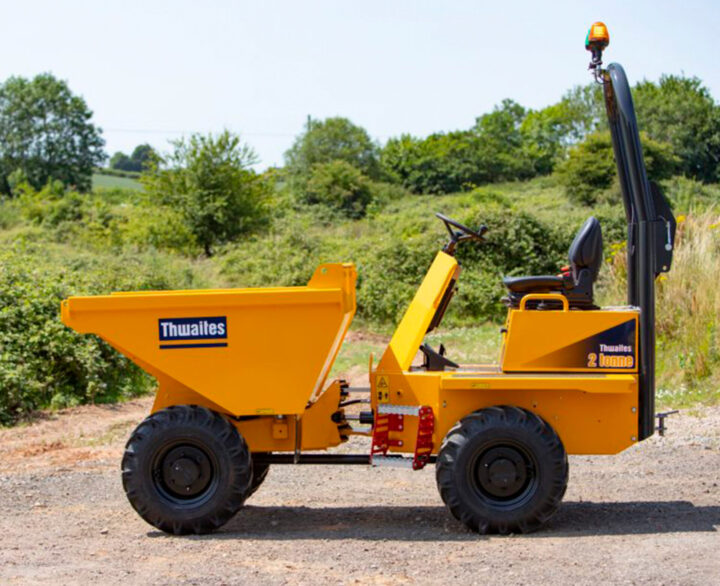

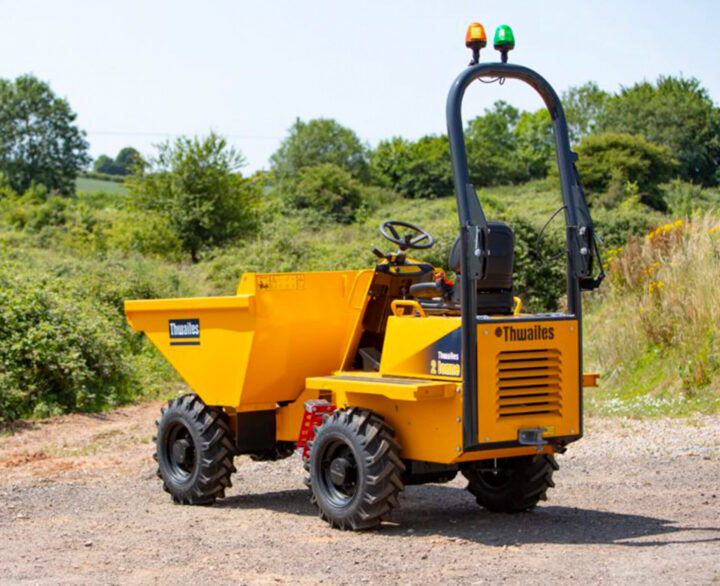

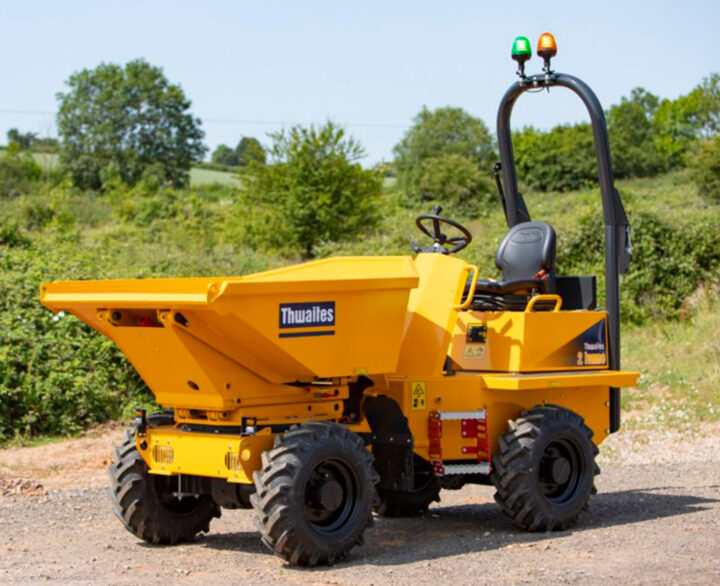

Thwaites 2t Front Tip: A Compact Site Dumper Driving Power and Precision
British Engineering: The Thwaites 2 Tonne Dumper is Built for Performance
In the competitive landscape of compact construction plant machinery, the Thwaites 2 Tonne Front Tip Dumper is a versatile, long-life machine within the Thwaites 2 tonne range, alongside Power Swivel and Hi Swivel models. Designed with contractors and hirers in mind, it focuses on operator safety and reducing risk on site, while helping to minimise skip damage through a robust 5 mm steel skip and reinforced box-section chassis. Built in Leamington Spa, England, it combines proven durability with efficient performance to protect residual value.
At its heart is a Stage V compliant, water-cooled Yanmar engine. This efficient 3-cylinder Yanmar 3TNV88-BWWA power unit delivers 18.1 kW (24.3 bhp) and 107 Nm max torque for optimum traction and control, with delivering 107 Nm max torque enabling confident operation on challenging terrain and when hauling heavy loads. Paired with a hydrostatic transmission, durable gearbox and heavy-duty axle, it offers precise manoeuvrability, high and low speed ranges, and a top speed of 15 km/h. A manual transmission option is also available, providing flexibility for different operator preferences and site requirements.
Thwaites 2 Front Tip Dumper Key Features
Operator Comfort and Control as Standard
Operator Comfort and Control as Standard
A comfortable operator is a safe operator, and this Thwaites dumper puts this principle into practice with a design focused on usability. It features an adjustable suspension seat equipped with a high-visibility seat belt, maintaining the operator remains secure and supported throughout the shift. The driving experience is enhanced by hydraulic power steering and a column-mounted directional control lever, which includes an inching facility for precise movements in tight spaces. With a turning circle of just 7.5m, it offers exceptional agility, making it the premier choice when space is at a premium.
REQUEST A QUOTE
Safety First with the Thwaites Front Tip Dumper
Safety First with the Thwaites Front Tip Dumper
Site safety remains paramount, and this front tip integrates essential protection systems as conventional equipment. Each dumper is supplied with a Spring Activated Hydraulic Release (SAHR) handbrake, providing reliable parking security on gradients. The operator is further protected by a ROPS frame, while awareness is enhanced through LED beacons and a reverse alarm. For improved visibility during early starts or late finishes, full LED road lights, including daylight running lights, can be fitted as an optional extra, guaranteeing the swivel dumper is seen by everyone on-site.
REQUEST A QUOTE
Maintenance Made Easy for Maximum Uptime
Maintenance Made Easy for Maximum Uptime
We understand that equipment downtime hurts your bottom line, which is why it is designed for ease of service and maintenance. A lockable engine cover provides security while allowing quick access to ground-level service points. To further simplify daily checks, both the diesel and hydraulic tanks are positioned low on the chassis, permitting easy access to the filler caps. The wiring harness is fully contained within conduits, and all electrical components are water-resistant to IP65/67 standards, ensuring the it remains reliable even when washed down or operating in wet conditions.
REQUEST A QUOTEA Site Dumper Built for Your Industry

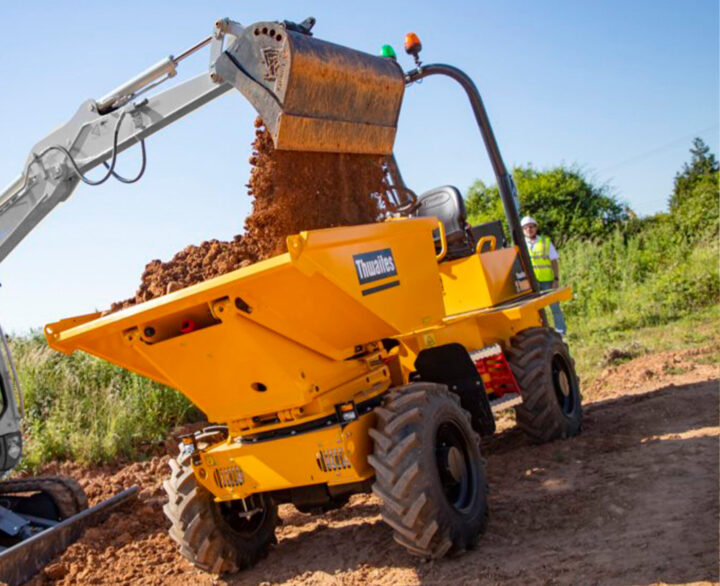

Built to handle the rigours of modern construction sites, the Thwaites 2 tonne front tip thrives in tough environments. Its exceptional durability starts with the Kinglink chassis, constructed from folded steel plate to provide articulation and oscillation for superior stability and traction. The skip itself is hydraulically operated and fully welded from 5 mm steel plate, featuring reinforced box sections at the mouth and sides to minimise impact damage during loading. With a maximum safe load of 2000 kg and a heaped capacity of 1240 litres, this machine is versatile enough to support serious earthmoving tasks while remaining compact enough for urban projects.
