Finlay J-1175 Hybrid
Jaw Crushers
Specifications
Model
J-1175 Hybrid
Operating Weight (Kg)
54,300
Jaw size (mm)
1070 x 760
Engine Type
CAT C4.4
Rated Engine Power Output
130hp
On-board genset or direct mains electric feed, the hybrid Finlay J-1175 jaw crusher has flexible power options
Your mobile solution for on‑site crushing and screening with the Finlay J‑1175 hybrid jaw crusher

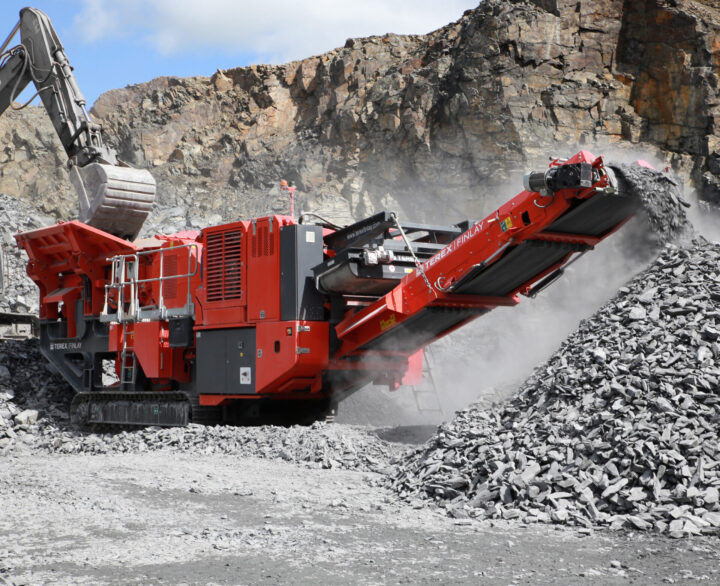

The Finlay J‑1175 Hybrid Jaw Crusher delivers a high-output jaw crushing solution for quarrying, construction, demolition and recycling applications, and mining applications. Equipped with a rugged jaw chamber and a heavy-duty variable-speed vibrating grizzly feeder (VGF), the J‑1175 Hybrid jaw crusher is designed for maximum throughput and energy efficiency.
It can be powered directly from the electrical grid or via diesel genset, while an onboard diesel engine is available for tracking and repositioning across sites. With hydrostatic drive and reversible jaw functionality, this electric crusher ensures continuous choke feeding of the crushing chamber and precise chamber controls for optimal productivity and ease of transport. The Finlay J-1175 is ideal for primary crushing applications and offers operators the flexibility to meet the demands of various projects, making it an efficient choice for assisting in demolition and recycling.
Key features of the Finlay J‑1175 hybrid jaw crusher

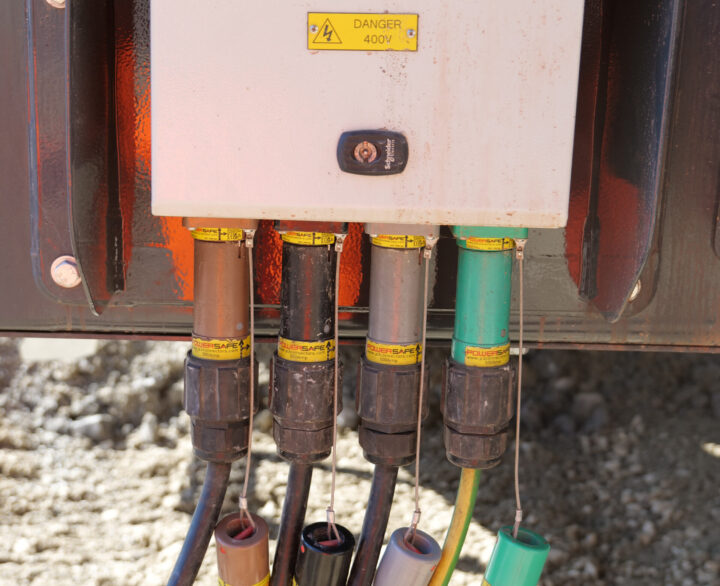

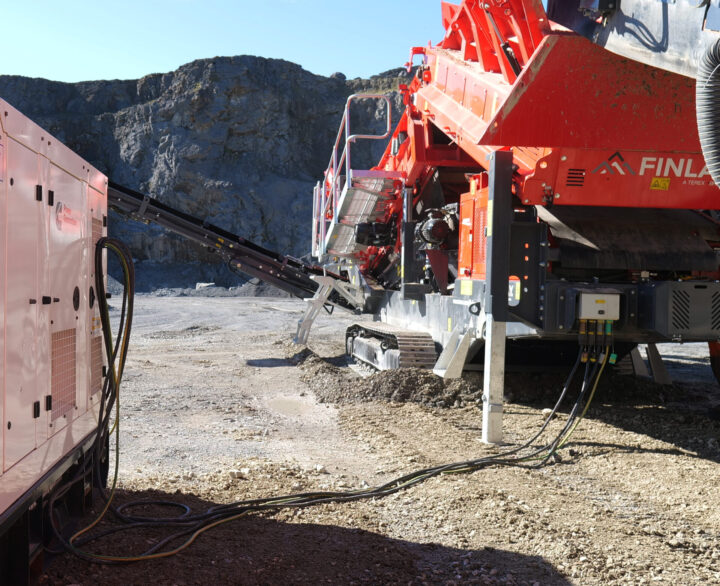

Flexible Power Source, On-Board Genset or Directly into the Mains
Flexible Power Source, On-Board Genset or Directly into the Mains

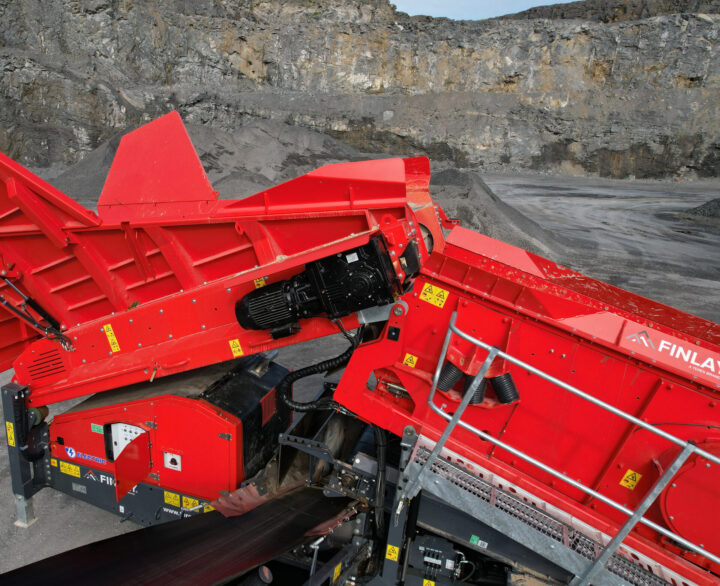

When repositioning, an onboard diesel engine drives tracked movement without sacrificing the productivity benefits of electric operation. The electric drive of the J-1175 jaw crusher ensures precise chamber controls and reverse functionality for clearing blockages and assisting in demolition, while the vibrating grizzly feeder (VGF) ensures continuous choke feeding of the crushing chamber for optimal productivity. This tracked mobile jaw crusher provides high capacity with large reduction ratios, making it an ideal crusher for quarrying and recycling. Experience the latest in jaw crushing technology with the Finlay J-1175 hybrid model, designed to enhance your operations and provide optimum production.
REQUEST A QUOTE
High‑Performance Jaw Chamber
High‑Performance Jaw Chamber
At its core is a Finlay J-1175 hybrid jaw crusher featuring a Terex JW42 single-toggle jaw crusher with a 1070 mm × 760 mm (42″ × 30″) inlet, delivering high capacity with large reduction ratios and consistent throughput. The J-1175 tracked jaw crusher features a hydrostatic drive with full hydraulic closed-side-setting adjustment and reverse functionality for clearing blockages and handling sticky or abrasive materials. Under-jaw clearance is approximately 460 mm nominal. The powerful vibrating grizzly feeder (VGF) with integrated pre-screen ensures uninterrupted choke feeding of the crushing chamber and efficient fines removal, protecting wear components and enhancing output performance across material types. This J-1175 hybrid jaw crusher is ideal for demolition and recycling applications, providing optimum production and ease of transport.
REQUEST A QUOTE
Compact Transport Dimensions
Compact Transport Dimensions
Despite its robust capabilities, the Finlay J-1175 hybrid jaw crusher remains transportable and site-friendly. It features hydraulically folding conveyors and a compact footprint for fast relocation typically within minutes and avoids specialist transport permits. The transport size is approximately 14.5 m long × 2.9 m wide × 3.5 m high, with an operating weight of around 51-54 t depending on options.
REQUEST A QUOTEDesigned for Operational Safety, Control & Serviceability
Finlay has integrated user-focused design elements into the J‑1175 hybrid jaw crusher:

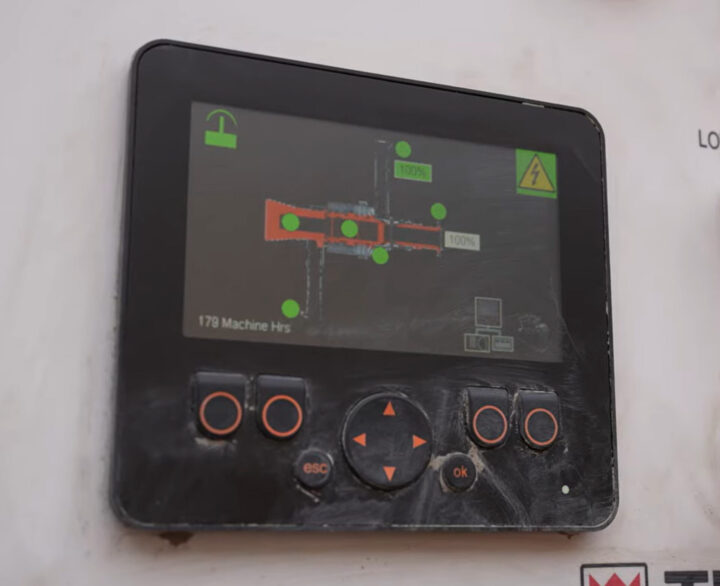

- Advanced Electronic Control System featuring a CANBUS interface and a menu-driven graphic interface, providing various modes for auto, manual, track mode, and application presets such as Hard Rock, Soft Rock, or Recycling. An optional full-function radio remote control is also available.
- Safety Features include robust guarding, emergency stops, and ground-level maintenance panels for easy access, minimising operator exposure and reducing downtime during routine checks or repairs.
- Telematics with T-Link connectivity offers 3–7 years of complimentary data subscription, allowing for remote monitoring and performance optimisation.
