Bell B60E 4×4
Articulated Dump Trucks
Specifications
Model
B60E 4x4
Rated Payload (Kg)
55,000
Heaped Capacity (m3)
35
Engine
Mercedes Benz OM473LA
Rated Engine Power Output
577 hp (430 kW)
European Emission Standard
Stage V Compliant

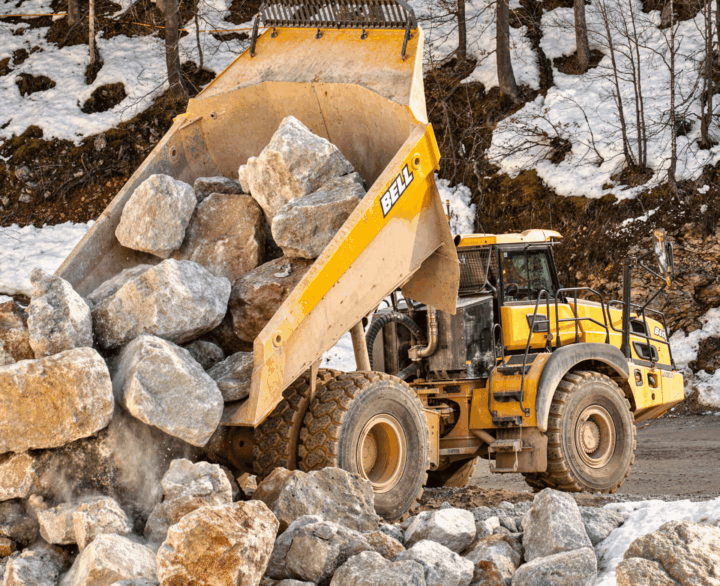

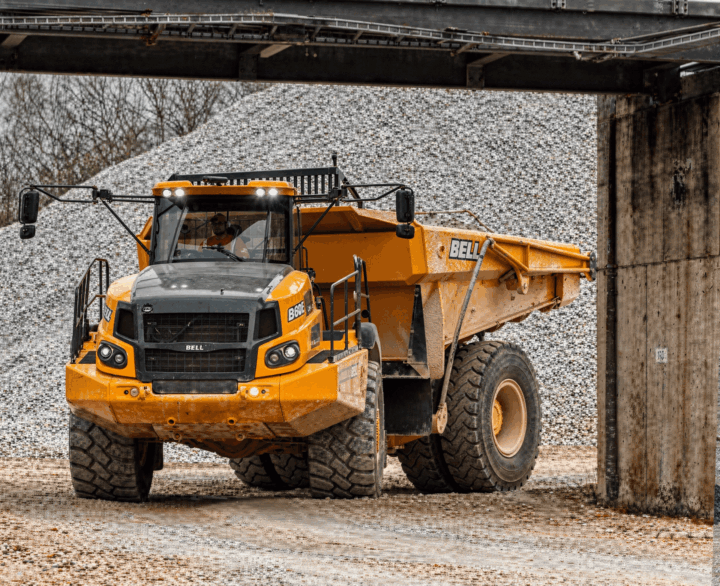

Bell B60E 4×4 articulated dump truck: Bell’s Biggest ADT
55-tonne payload, 35m³ body and 577hp Mercedes Benz power
The Bell B60E 4×4 ADT was developed to bridge the gap between traditional articulated dump trucks and rigid haulers. Combining a 55-tonne payload with a 35m³ body, it offers significantly greater carrying capacity than a conventional ADT while retaining the manoeuvrability and off-road capability that Bell machines are known for. Built for quarrying, mining and large-scale earthmoving equipment applications, the B60E is designed for sites that need more payload without moving to a rigid truck solution.
Key Features of the Bell B60E 4×4

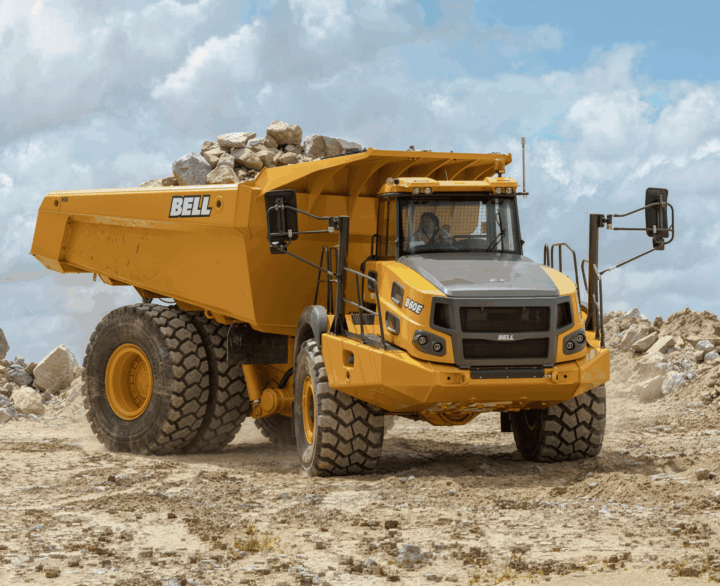

55 Tonnes, No Rigid Truck
55 Tonnes, No Rigid Truck
With a rated payload of 55 tonnes, the B60E delivers the carrying capacity typically associated with larger rigid haulers while maintaining the flexibility of an articulated machine. Developed to fill the gap between conventional ADTs and rigid dump trucks, it allows operators to move more material every cycle without sacrificing manoeuvrability around loading areas, stockpiles and haul roads. This helps maximise output and supports a lower cost per tonne on high-production sites.
REQUEST A QUOTE

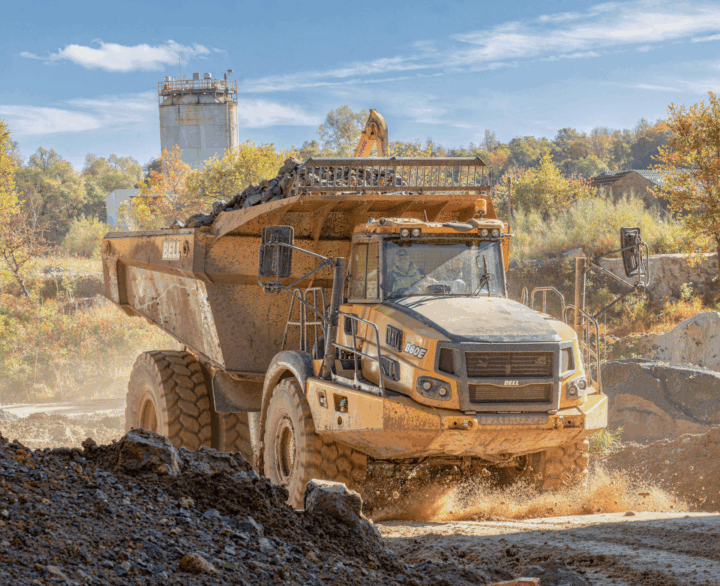

Built for Tough Conditions
Built for Tough Conditions
The B60E was designed for sites where weather and ground conditions can quickly affect productivity. Its all-wheel-drive design helps maintain productivity and efficiency in slippery, uneven terrain and challenging underfoot conditions. Bell specifically positions the B60E as a solution for soft underfoot conditions, making it particularly effective in quarrying, mining and earthmoving applications where other haulage solutions may struggle.
REQUEST A QUOTE
Bell's Largest ADT
Bell's Largest ADT
As the largest machine in Bell’s articulated dump truck range, the B60E combines high-capacity hauling with the flexibility of an ADT. Bell highlights its smaller turning circle and reduced tyre scuffing compared with conventional haulage solutions, helping operators work efficiently in confined loading areas and reduce haul road damage. These advantages are often best appreciated during a live quarry demonstration, where the B60E’s site versatility becomes clear.
REQUEST A QUOTE577hp Mercedes Benz Power
Powered by a 577hp Mercedes Benz OM473LA Stage V engine and Allison 4800 ORS transmission, the B60E delivers the performance required for demanding production environments. Strong fuel efficiency helps reduce operating costs, while onboard weighing, Fleetm@tic, i-Tip, Tip Safe and Front Comfort Ride support safe and productive operation. Compatible with modern collision avoidance systems, the B60E is designed to deliver the lowest cost per tonne possible across high-output mining, quarrying and construction equipment fleets.
