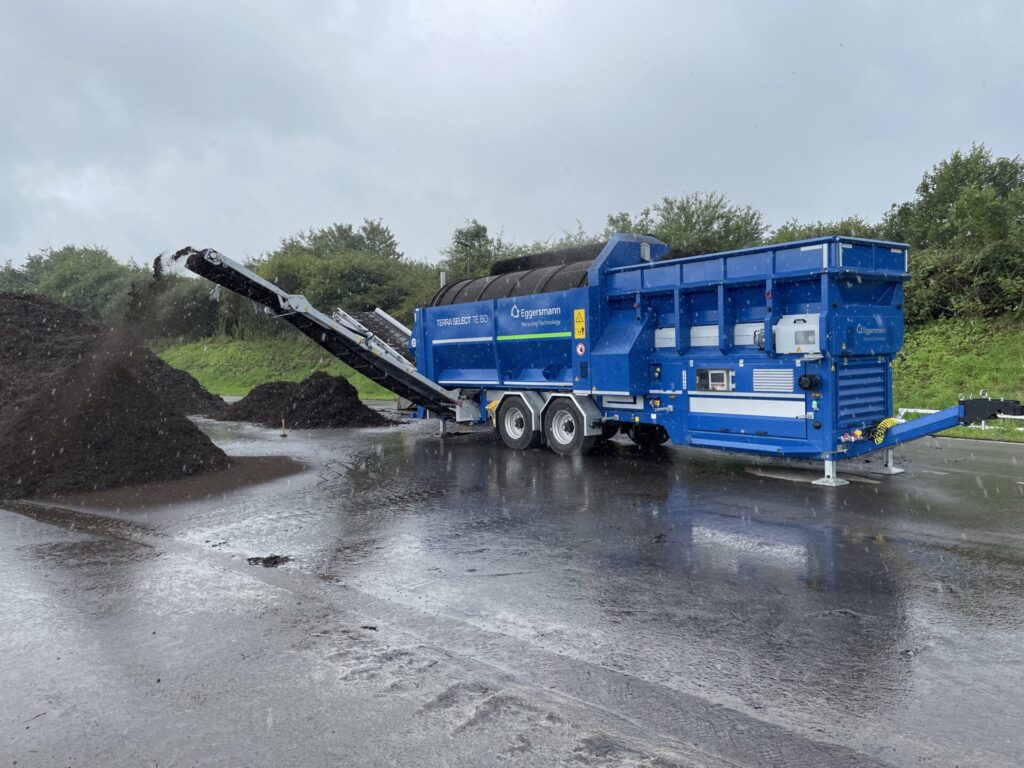

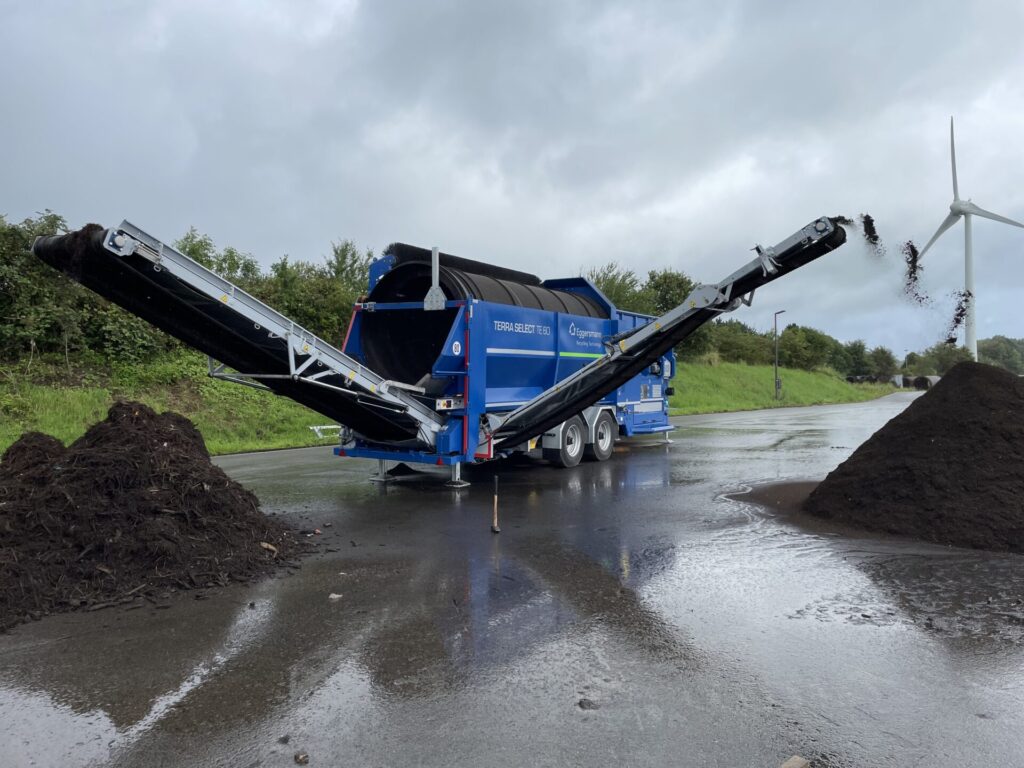

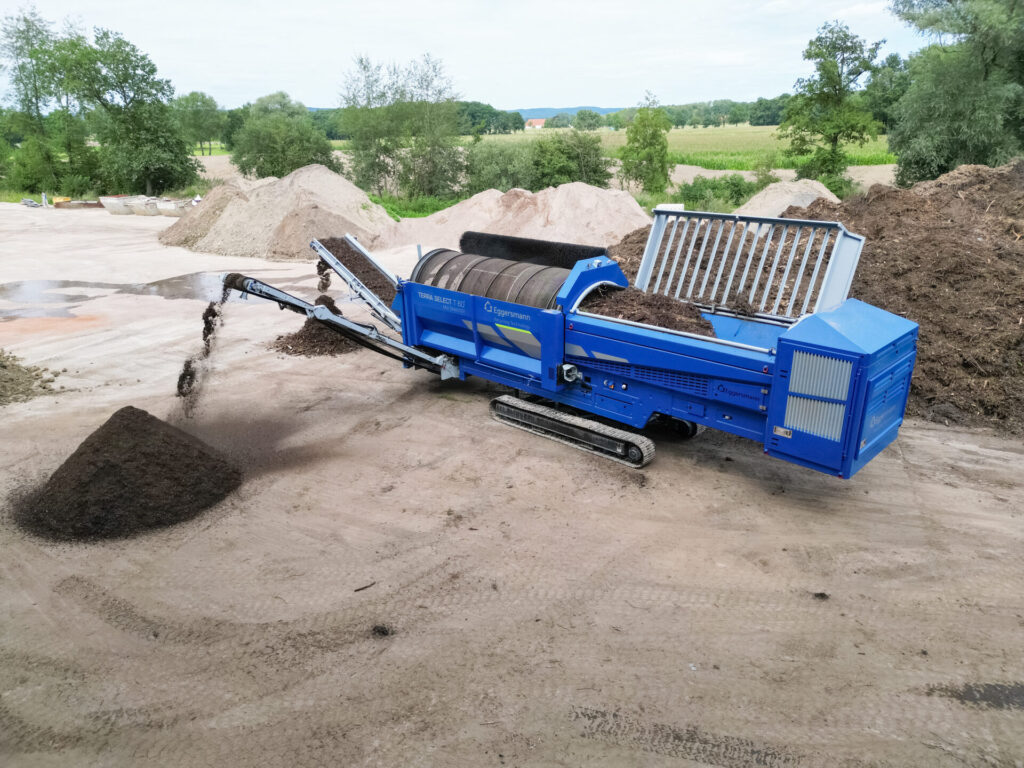

Equipped with the widest drum diameter on the market and easily-changeable trommel screens, the Eggersmann TERRA SELECT T 60 can help UK waste and recycling businesses achieve new levels of throughput without sacrificing piece size precision. With this top-class mobile solution, businesses can achieve a screening capacity of up to 200 m3 per hour.
Suitable for screening a range of shredded waste, including commercial, C&D, organic, glass and plastic, the T 60 can meet various industry applications. Perfect for ambitious businesses looking to maintain separation quality, the drum diameter of 2.2m means more materials can be processed with less blockage risk.
Different trommel screens are available to process different materials. From solid, punched steel designs for pre-shredded building rubble to fine, segmented wire mesh options for light, organic materials, various trommels to suit different applications are available. These can be interchanged quickly and easily using a telehandler through an open-side, hydraulically-controlled system. This helps operators maintain tight control over cut sizes while maximising their safety.
A force-locking sprocket drive turns the trommel, helping to reduce slip risk even when the machine is processing heavy loads of materials. It’s also powered by a 75kW (102hp) diesel-hydraulic engine, maintaining high levels of throughput while keeping fuel consumption low.
The hopper size also enables the machine to process large volumes. Available in capacities up to 7.5m3, material can be loaded into the machine via a loading shovel. Powered by a durable form-fit hopper drive, high levels of performance are maintained even with heavy loads.

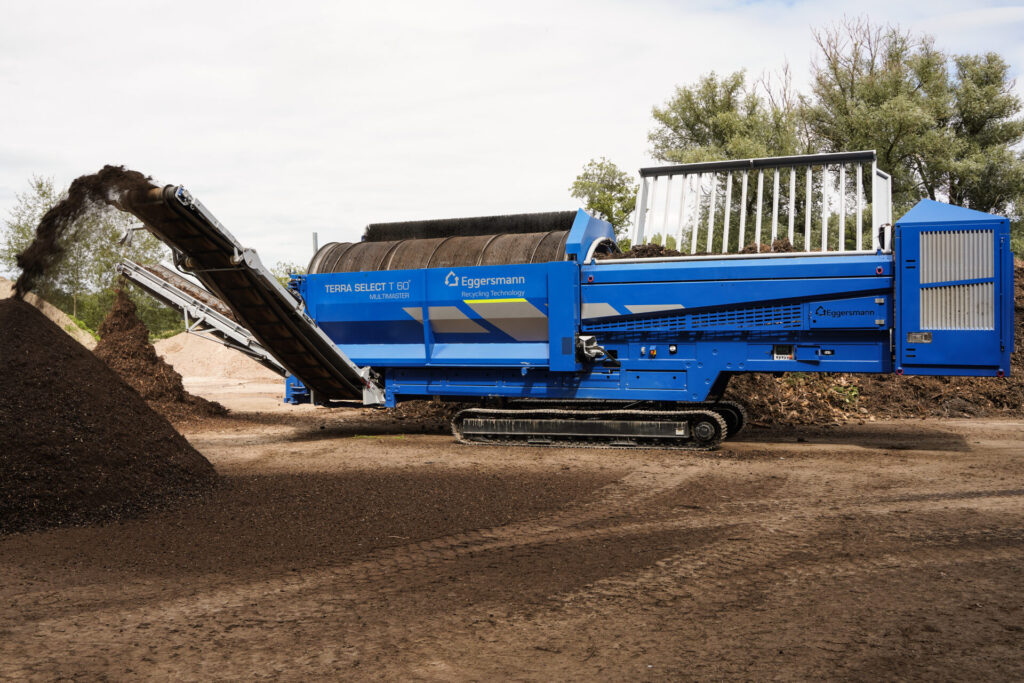

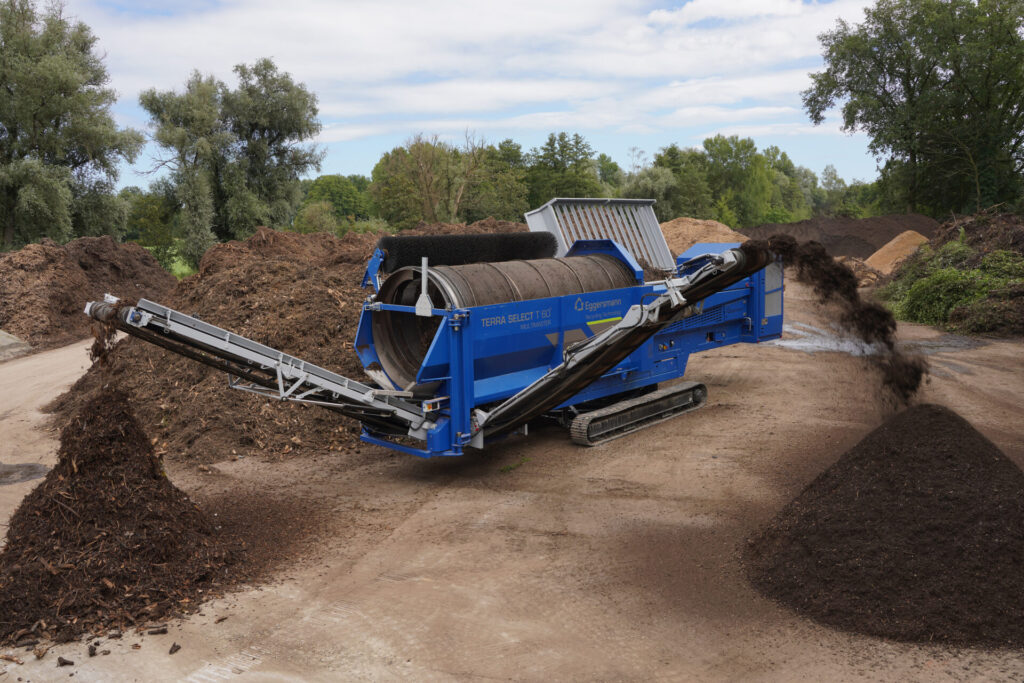

The tracked model also has extra features to maintain the efficiency of the processing train. An adjustable height means operators can easily link the screener into other machines. The incline compensation of up to 7% also helps teams achieve high-quality screening results, even if the ground is uneven. Adding the extra long conveyor option means material can be discharged into high dumping cones.
Extra tooling options also help maintain screening quality. A stone belt removes heavy impurities and the magnetic roller separates out valuable metals and discharges them downwards. Plus, an AIRFIX V 60 wind sifter can be easily attached to the discharge conveyors to remove light impurities such as plastic or film. The reliability of these tools helps operators maintain clean, high-quality material.
To minimise the risk of downtime, the machine has an automatic central lubrication system to keep it running smoothly. The stone grid with the QuickChange system means the discharge side can be changed whenever needed, protecting the T 60 from heavy impurities. A broom scraper can also keep this part of the machine clean from build-ups. All these elements help to maintain productivity even during long hours of processing.
Thomas McKiver, Sales Director for Molson Green, said, “Every feature on this machine is designed to maximise efficiency and throughput. From being able to quickly change trommel screens to meet different material feed or customer demands to the hydraulic track adjustments, this machine helps businesses stay adaptable, which is perfect for the UK market.
“With the stone belt, magnetic roller and AIRFIX also available from Eggersmann, it means businesses don’t have to deal with several different manufacturers to keep their machine running. When they purchase from Molson Green, they get their aftersales support wrapped into the package too, keeping businesses protected from downtime.”
